GYXTC8S-4-24C Metallic(Galvanized Steel Strand) (6.3士0.2)×(12.0±0.5)mm
Adopting ITU-T Rec. G.652D single-mode fiber, this outdoor cable has a mode field diameter of 9.2±0.4μm @1310nm, cladding diameter of 125.0±0.7μm, attenuation coefficient <0.35dB/km @1310nm and ≤0.21dB/km @1550nm, cable cut-off wavelength ≤1260nm, and temperature dependence ≤0.1dB/km (0℃~+70℃@1310&1550nm), ensuring reliable transmission in various outdoor environments.
Product Packaging
Characteristics

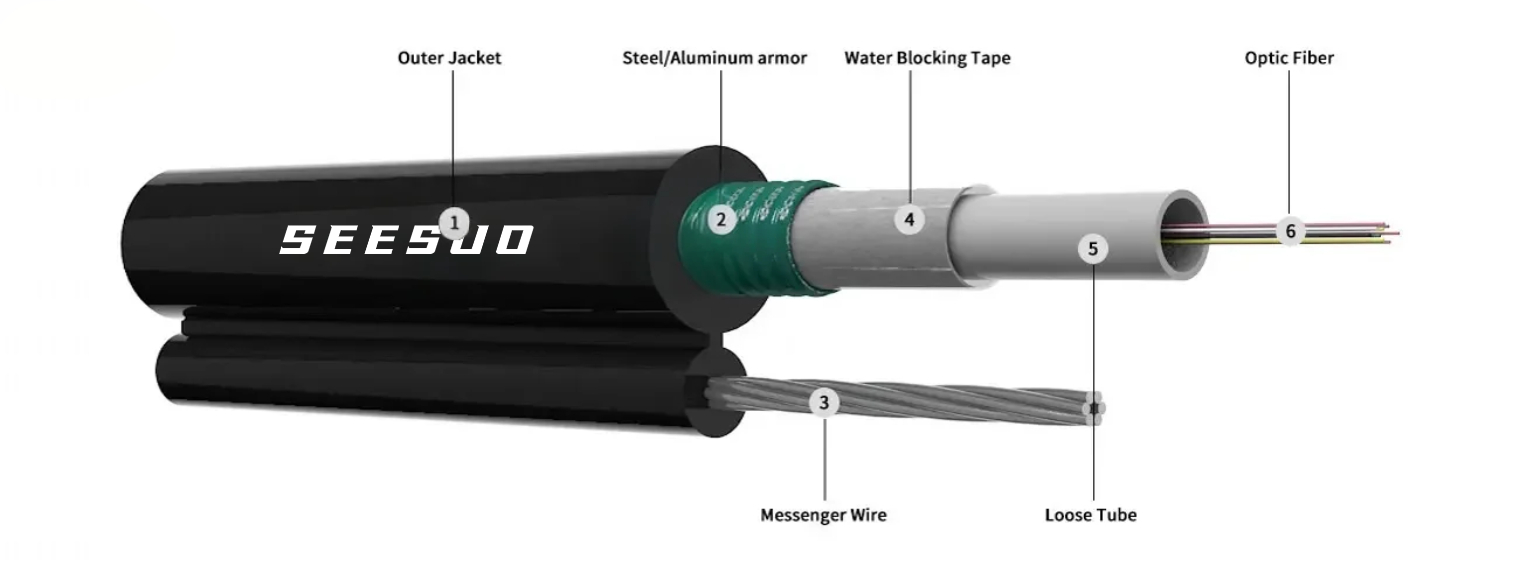

1. Universal outdoor design compatible with aerial and multiple laying scenarios, featuring compact structure and light weight (72~84kg/km±5kg) 2. Water blocking tape + jelly compound double moisture protection, combined with steel tape armoring and double-layer MDPE sheath, providing comprehensive mechanical protection 3. Rich fiber color spectrum (including marked colors for 13-24 cores) for easy identification and maintenance
Standards
Comply with ITU-T Rec. G.652D, IEC 60794 series standards
Technical Parameters
Cable Type | Mode Field Diameter @1310nm | Cladding Diamete | Attenuation Coefficient @1310nm | Attenuation Coefficient @1550nm | Strength Member Diameter | Messenger Wire Diameter | Operating Temperature |
GYXTC8S-4-96C | 9.2±0.4μm | 125.0±0.7μm | ≤0.35dB/km | ≤0.21dB/km | N/A (Steel Strip Armoring) | R7x0.9/R7x1.0mm (Galvanized Steel Strand) | -20~+60℃ (Installation); -40~+70℃ (Transport/Storage/Operation) |
Packaging Specifications
· Inner Packaging: Cables are wound in coils with protective packaging materials to prevent wear
· Marking Requirements: Sequential length marking every 1 meter on the sheath (accuracy ±1%), including manufacturer name, product model, production year and month
· Length Supply: Customizable in coils according to customer requirements
Logistics logistics
Logistics Parameters
· Container Loading: Load with appropriate spacing to avoid extrusion damage
· Transport Conditions: Avoid severe vibration, high-temperature exposure, rain and humid environments; transport with pallet stacking
