ADSS-2-96C Non-Metallic(FRP) (9.4±0.2)-(11.9±0.2)mm
This cable adopts ITU-T Rec. G.652D single-mode fiber with a mode field diameter of 9.2±0.4μm @1310nm, cladding diameter of 125.0±0.7μm, attenuation coefficient ≤0.35dB/km @1310nm and ≤0.21dB/km @1550nm, cable cut-off wavelength ≤1260nm, zero-dispersion wavelength ranging from 1300~1324nm, and polarization mode dispersion (PMD Q) ≤0.2ps/km¹/², ensuring stable optical transmission performance.
Product Packaging
Characteristics

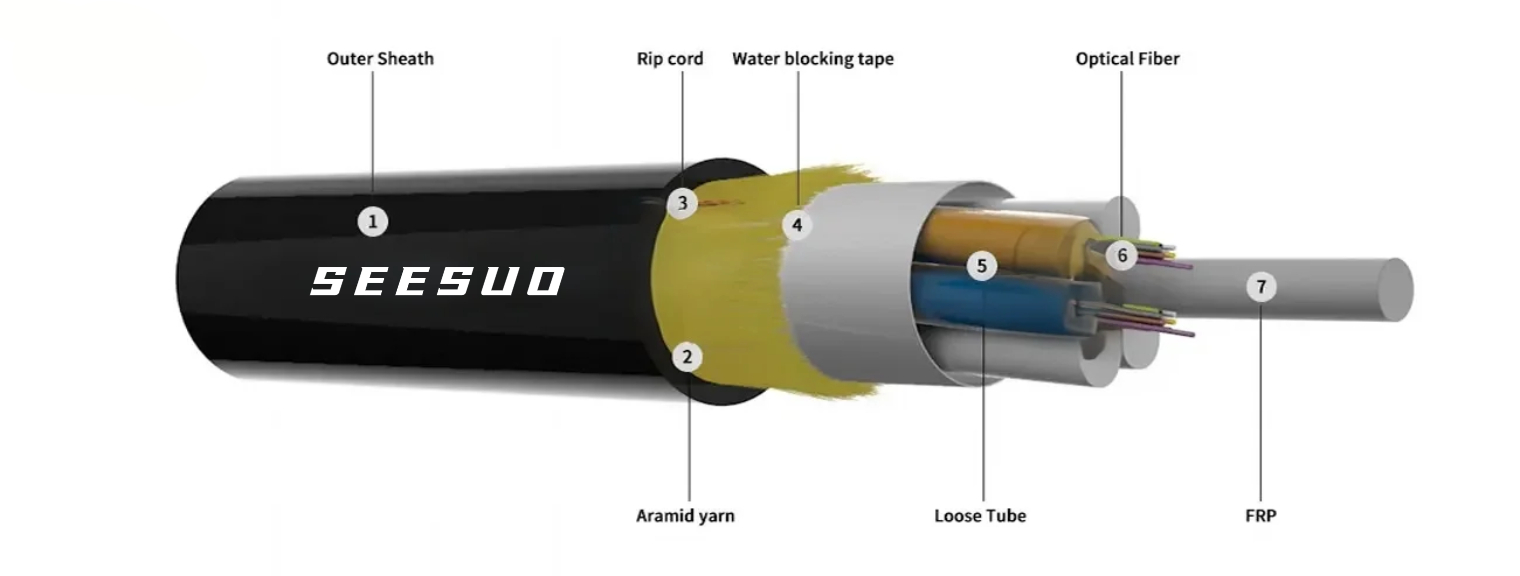

1. All-dielectric structure without metal components, suitable for high electric field environments and aerial laying with a maximum span of 60m 2. Multiple water blocking designs (water blocking yarn + water blocking tape) and HDPE outer sheath, providing excellent moisture resistance and weather resistance 3. High mechanical strength with tensile strength of 2500N, crush resistance of 1000N/100mm, and strong impact resistance, adapting to harsh outdoor conditions
Standards
Comply with ITU-T Rec. G.652D, IEC 60794 series standards
Technical Parameters
Cable Type | Mode Field Diameter @1310nm | Cladding Diamete | Attenuation Coefficient @1310nm | Attenuation Coefficient @1550nm | Strength Member Diameter | Messenger Wire Diameter | Operating Temperature |
ADSS-2-96C | 9.2±0.4μm | 125.0±0.7μm | ≤0.35dB/km | ≤0.21dB/km | 1.5/2.1mm (FRP) | N/A | -20~+60℃ (Installation); -40~+70℃ (Transport/Storage/Operation) |
Packaging Specifications
· Inner Packaging: Cables are wound in coils with special packaging protection to prevent transportation wear
· Marking Requirements: Sequential length marking every 1 meter on the cable sheath (starting from 0m, accuracy ±1%), including manufacturer name, product model, production year and month
· Length Supply: Customizable according to customer requirements, delivered in coils
Logistics logistics
· Container Loading: Load in accordance with standard container specifications to ensure packaging integrity
· Transport Conditions: Avoid severe vibration, high-temperature exposure and humid environments; pallet stacking is recommended for secure transport
