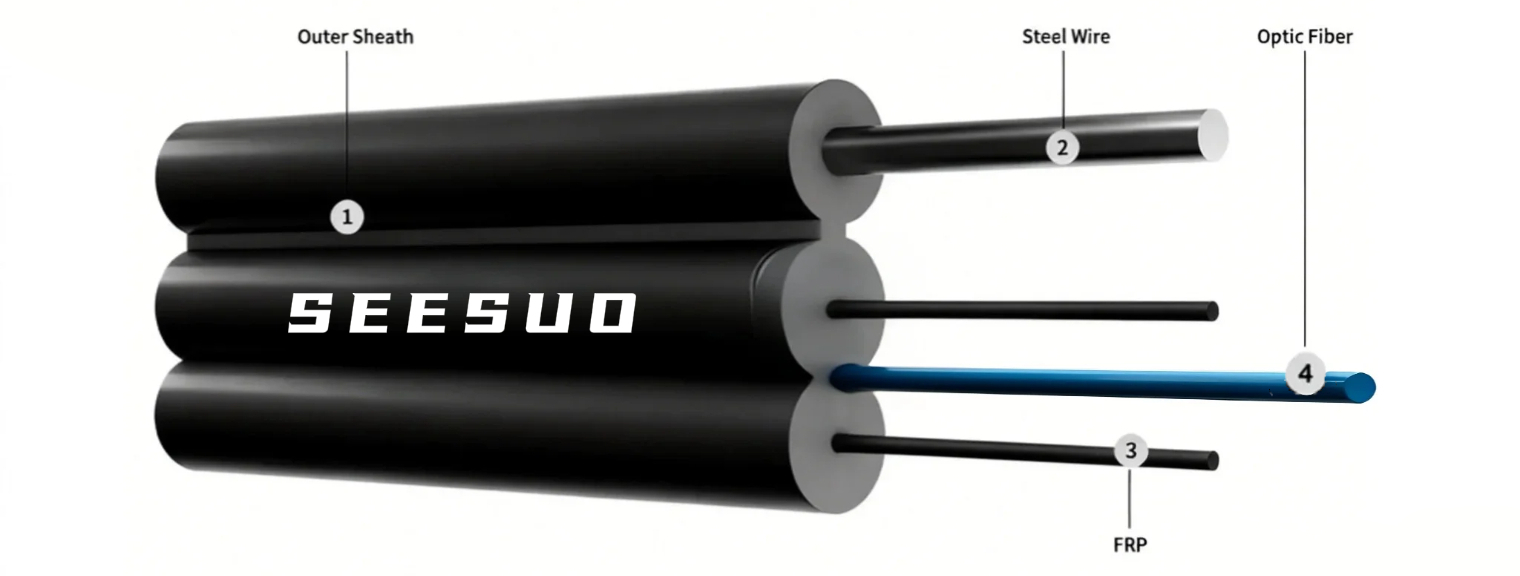

GJYXFCH-1C Non-Metallic (GFRP) (2.0±0.1)×(5.0±0.2)
This non-loose tube cable uses G.657A1 single-mode fiber with a mode field diameter of 8.6±0.4μm @1310nm, cladding diameter of 125±1μm, attenuation coefficient ≤0.36dB/km @1310nm and ≤0.22dB/km @1550nm, cable cut-off wavelength ≤1260nm, and macro-bend additional attenuation ≤0.25dB @1550nm (10 turns at 15mm radius), featuring simple structure and excellent bending performance.
Product Packaging
Characteristics
1. Non-loose tube design with ultra-simple structure and light weight (about 18.5kg/km), facilitating flexible installation in narrow spaces 2. LSZH environmental protection sheath with flame retardancy, low smoke and zero halogen, suitable for scenarios with high environmental requirements 3. GFRP reinforcement members and galvanized steel strand messenger wire, providing short-term tensile strength of 600N and crush resistance of 2200N/100mm, with strong mechanical reliability
Standards
Comply with ITU-T G.657, IEC 60332-1, IEC 60794 series standards
Technical Parameters
Cable Type | Mode Field Diameter @1310nm | Cladding Diamete | Attenuation Coefficient @1310nm | Attenuation Coefficient @1550nm | Strength Member Diameter | Messenger Wire Diameter | Operating Temperature |
GJYXFCH-1C | 8.6±0.4μm | 125.0±0.7μm | ≤0.36dB/km | ≤0.22dB/km | 2×0.5mm (GFRP) | 0.4mm×7 (Galvanized Steel Strand) | -10~+70℃ (Transport/Storage/Installation); -25~+70℃ (Temperature Cycling) |
Packaging Specifications
· Inner Packaging: Cables are wound in coils and protected with wrapping film to prevent wear
· Marking Requirements: Ink printing on the sheath, customized according to customer requirements
· Length Supply: Customizable in coils according to customer requirements
Logistics logistics
· Container Loading: Load in coils with appropriate protective measures to avoid extrusion
· Transport Conditions: Avoid severe vibration, high-temperature exposure, rain and humid environments; handle with care
