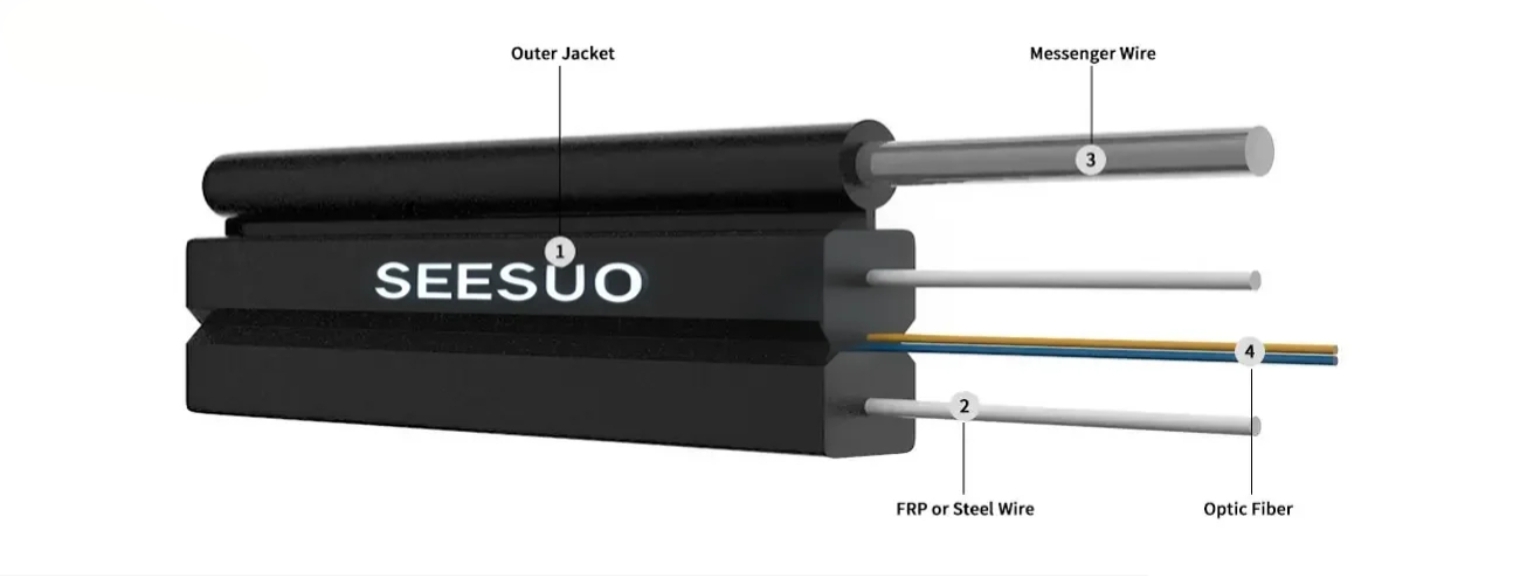

GJYXCH-1-2C Metallic(Phosphatized Steel) (2.0士0.1)×(5.0士0.1)
GJYXCH Optical Cable utilizes G.657A1 fiber with 8.6±0.4μm mode field diameter, 125.0±0.7μm cladding diameter, and ≤0.4dB/km attenuation coefficient. It features phosphating steel wire strength members and LSZH suitable environments
Product Packaging
Characteristics
1. Simple structure, light weight, high tensile strength 2. Novel groove design, easily strip and splice, simplified installation and 3. Low smoke, zero halogen and flame retardant sheath, environment-friendly, good safety
Standards
Comply with standard CE/RoHS/UL etc.
Technical Parameters
| Cable Type | Mode Field Diameter @1310nm | Cladding Diameter | Attenuation Coefficient @1310nm | Attenuation Coefficient @1550nm | Strength Member Diameter | Messenger Wire Diameter | Operating Temperature |
|---|---|---|---|---|---|---|---|
GJYXFCH-1 | 8.6±0.4μm | 125.0±0.7μm | ≤0.4dB/km | ≤0.22dB/km | 0.4 (Phosphating steel wire) | 0.9 (Phosphating steel wire) | -20~+60 |
GJYXFCH-2 | 8.6±0.4μm | 125.0±0.7μm | ≤0.4dB/km | ≤0.22dB/km | 0.4 (Phosphating steel wire) | 0.9 (Phosphating steel wire) | -20~+60 |
Packaging Specifications
· Inner Packaging: Fiber jumpers are wound with a 12cm inner diameter spool and protected by wrapping film
·Outer Box Dimensions: 51cm x 18cm x 26cm cardboard box, accommodating 10 jumpers per box
Marking Requirements: Compliant with IEC60794-1-2F1 standard, labeled with operating temperature range -20°C to +60°C
Logistics logistics
ContainerLoading:20-footcontainercanhold1,2ooboxes(grossweightapprox.24tonspercontainer
Transport Conditions: Avoid severe vibration, direct sunlight exposure at high temperatures, and humid environments; pallet stacking is recommended for secure transport
