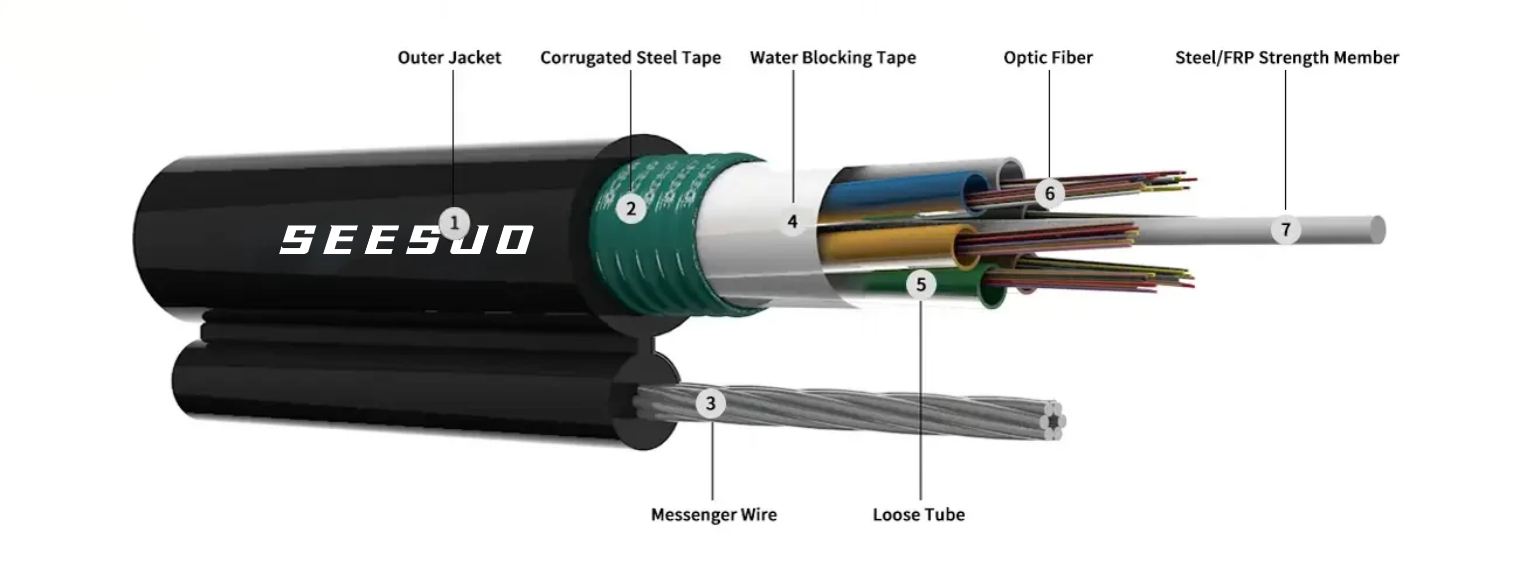

GYFTC8S-4-96C Metallic(Galvanized Steel Strand) (8.9±0.5)×(17.6±1.0)mm
This aerial cable uses ITU-T Rec. G.652D single-mode fiber, featuring a mode field diameter of 9.2±0.4μm @1310nm, cladding diameter of 125.0±0.7μm, attenuation coefficient ≤0.35dB/km @1310nm and ≤0.21dB/km @1550nm, zero-dispersion wavelength 1300~1324nm, and polarization mode dispersion ≤0.2ps/km¹/², meeting high-speed data transmission needs.
Product Packaging
Characteristics
1. Aerial-specific design with galvanized steel strand messenger wire, facilitating quick installation and fixing 2. Steel tape armoring + double-layer MDPE sheath, enhancing crush resistance and corrosion resistance, suitable for long-term outdoor use 3. Flooding compound and water blocking structure, effectively preventing moisture intrusion and ensuring fiber stability
Standards
Comply with ITU-T Rec. G.652D, YD/T901-2001, IEC 60794 series standards
Technical Parameters
Cable Type | Mode Field Diameter @1310nm | Cladding Diamete | Attenuation Coefficient @1310nm | Attenuation Coefficient @1550nm | Strength Member Diameter | Messenger Wire Diameter | Operating Temperature |
GYFTC8S-4-96C | 9.2±0.4μm | 125.0±0.7μm | ≤0.35dB/km | ≤0.21dB/km | 1.4/3.2mm (FRP/FRP+PE) | R7x0.9/R7x1.0mm (Galvanized Steel Strand) | -20~+60℃ (Installation); -40~+70℃ (Transport/Storage/Operation) |
Packaging Specifications
· Inner Packaging: Cables are wound in coils with protective packaging to avoid transportation wear
· Marking Requirements: Sequential length marking every 1 meter on the sheath (accuracy ±1%), including product model, production year and month
· Length Supply: Customizable in coils according to customer requirements
Logistics logistics
· Container Loading: Follow standard container loading procedures to avoid cable damage
· Transport Conditions: Avoid severe collision, high-temperature exposure, rain and humid environments; fixed transportation with pallets is recommended
