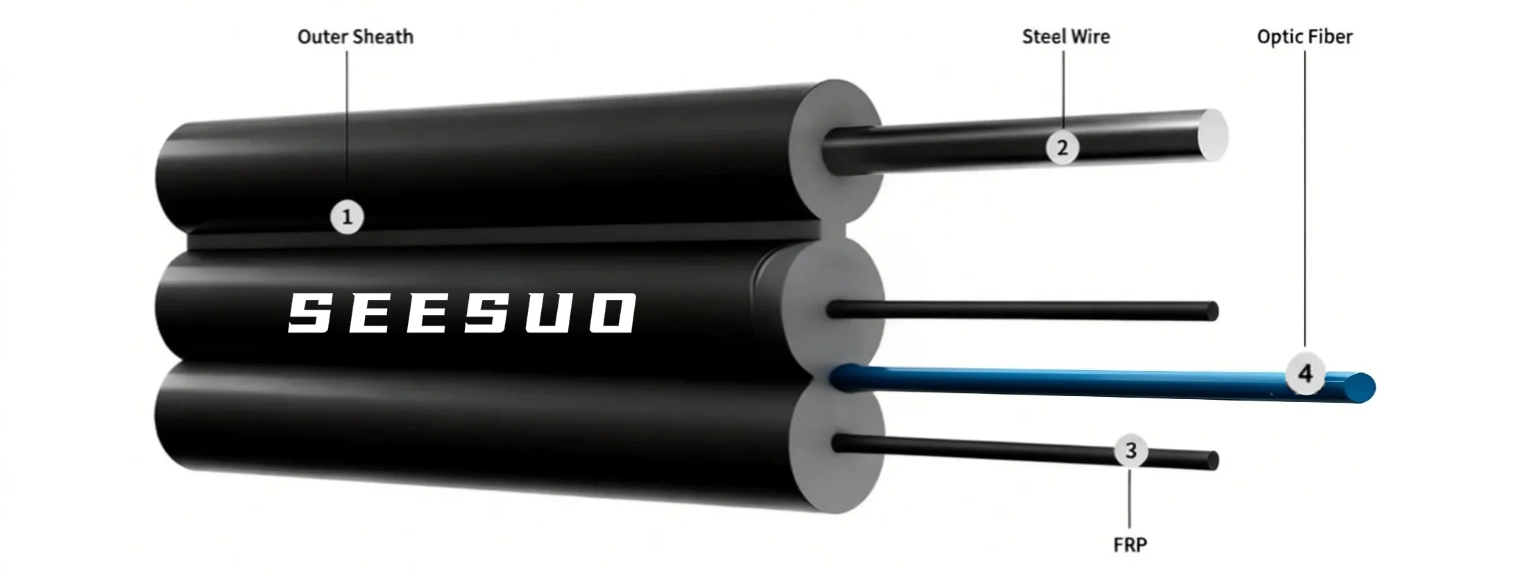

GJYXFCH-1C Non-Metallic(GFRP) (2.0±0.1)×(5.1±0.2)
Adopting G.657A1 single-mode fiber, this cable has a mode field diameter of 8.6±0.4μm @1310nm, cladding diameter of 125±1μm, attenuation coefficient ≤0.34dB/km @1310nm and ≤0.22dB/km @1550nm, cable cut-off wavelength ≤1260nm, zero-dispersion wavelength 1300~1324nm, and polarization mode dispersion ≤0.2ps/√km, ensuring stable and efficient optical transmission.
Product Packaging
Characteristics
1. Ultra-simple non-loose tube structure with light weight (about 17kg/km), suitable for various laying scenarios and easy construction 2. LSZH outer sheath complying with RoHS standards, environmentally friendly, flame-retardant, non-toxic and low-smoke, adapting to indoor and outdoor sensitive environments 3. Excellent mechanical performance: short-term tensile strength 600N, crush resistance 1500N/100mm, and passing 24-hour water penetration test, with strong environmental adaptability
Standards
Comply with ITU-T G.657, RoHS, IEC 60794 series standards
Technical Parameters
Cable Type | Mode Field Diameter @1310nm | Cladding Diamete | Attenuation Coefficient @1310nm | Attenuation Coefficient @1550nm | Strength Member Diameter | Messenger Wire Diameter | Operating Temperature |
GJYXFCH-1C | 8.6±0.4μm | 125.0±0.7μm | ≤0.34dB/km | ≤0.22dB/km | 2×0.5mm (GFRP) | 1.0±0.05mm (Phosphatized Steel Wire) | -10~+70℃ (Transport/Storage/Installation); -25~+70℃ (Temperature Cycling) |
Packaging Specifications
· Inner Packaging: Cables are wound in coils and protected with wrapping film, tightly wound
· Marking Requirements: Ink printing marking every 1 meter on the sheath, including length information
· Length Supply: Standard 1km/2km per coil, customizable according to customer requirements
Logistics logistics
· Container Loading: Fix with pallets in the container to ensure stability during transportation
· Transport Conditions: Avoid severe vibration, high-temperature exposure, rain and humid environments; store away from fire, heat sources and corrosive substances after unloading
