Aerial Optical Cable Specifications

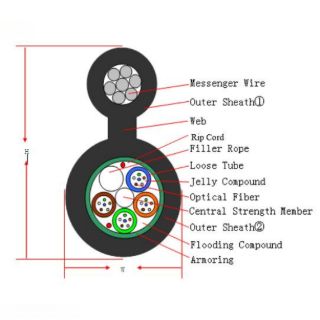

GYFTC8S-4-96C Metallic(Galvanized Steel Strand) (8.9±0.5)×(17.6±1.0)mm
G652D fiber
- Attenuation: ≤0.35dB/km(@1310nm)≤0.32dB/km(@1383nm)
- Attenuation: ≤0.21dB/km(@1550nm)≤0.25dB/km(@1625nm)
- Crush: 1000N/100mm; Weight: 143-190kg/km;
- MDPE sheath, water-blocking structure
Application:
Self-supporting aerial design, 4-96 cores – ideal for outdoor long-distance communication network deployment.

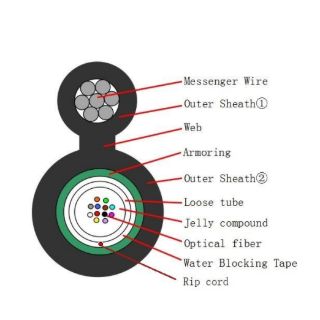

GYXTC8S-4-24C Metallic(Galvanized Steel Strand) (6.3士0.2)×(12.0±0.5)mm
G652D fiber
- Attenuation:<0.35dB/km(@1310nm)/<0.32dB/km(@1383nm)
- Attenuation:<0.21dB/km(@1550nm)/<0.24dB/km(@1625nm)
- Crush: 1000N/100mm;Weight: 72-84kg/km;
- MDPE sheath, steel strip armoring, water-blocking tape
Application:
Armored self-supporting, 4-24 cores - suitable for residential/industrial park outdoor aerial cabling.

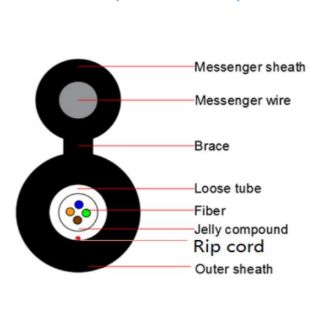

GYXTC8Y-2-12C Metallic(Steel Wire) (3.8士0.5)×(7.5±0.5)mm
G652D fiber
- Attenuation:<0.35dB/km(@1310nm/<0.32dB/km(@1383nm)
- Attenuation:<0.21dB/km(@1550nm)<0.25dB/km(@1625nm)
- Weight: 27kg/km;Tensile strength: 1000N(short)/400N(long) MDPE sheath, compact structure
Application:
LSZH sheath, low attenuation & macro-bend loss -ideal for indoor FTTH residential cabling with narrow spaces

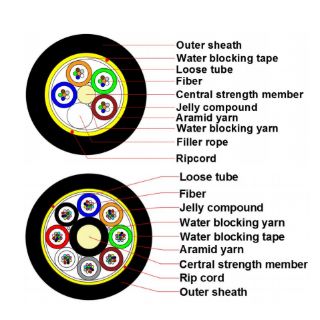

ADSS-2-96C Non-Metallic(FRP) (9.4±0.2)-(11.9±0.2)mm
G652D fiber
- Attenuation:<0.35dB/km(@1310nm)/<0.32dB/km(@1383nm)
- Attenuation:<0.21dB/km(@1550nm)/<0.35dB/km(@1625nm)
- Crush: 2200N/100mm;Weight: 65-105kg/km;
- HDPE sheath, FRP core, aramid reinforcement.
Application:
All-dielectricself-supporting-suitableforhigh-voltagepower line aerial cabling (span 60m), anti-interference.
PRODUCT DISPLAY
Quality Control Process
Raw Material Inspection
Inspect key materials for drop cables – G657A1 optical fiber (attenuation & concentricity), GFRP/phosphatized steel (strength member), and LSZH sheath (flame-retardant & environmental compliance) to eliminate defective inputs.
In-Process Monitoring
Real-time monitoring of cable stranding, sheath extrusion, and fiber positioning during production – ensuring consistent outer diameter, uniform sheath thickness, and no fiber damage for GJYXFCH/GJYXCH series.
Finished Product Testing
Comprehensive tests for drop cable performance - optical attenuation (@1310/1550nm), tensile strength (600N short-term), crush resistance (1500-2200N/100mm), and temperature cycling (-25-70℃) to guarantee stable operation.
Packaging & Delivery Inspection
Verify cable length (per meter ink marking), packaging integrity (moisture-proof wrapping), and batch labeling (model, core count, production date) – ensuring intact delivery for bulk FTTH projects worldwide.
